Formwork

Oem Factory Price Circular Column Steel Formwork

Column steel formwork is a formwork tool specially used for pouring concrete columns in building construction. It is mainly composed of steel plates and reinforcement ribs, with high strength and durability, and can effectively support the weight of concrete, ensuring that the shape and size of the column meet the design requirements.



Standard Size:

Height * Diameter(mm):

1500*400/1500*500/1000*500/1000*600

  • Surface-Treatment :

    powder spraying,etc.
  • Payment :

    TT
  • Color :

    customization
  • Shipping Port :

    Tianjin/Guangzhou
  • Lead Time :

    7-40 days

      Steel formwork for column is some formwork devices specifically used in pouring out round concrete structures, with major usage in buildings, bridges and major infrastructure construction. Made of high-strength Q235, Q345 steel, it features good load-bearing and durability qualities to fit the needs for different projects of round concrete.









Column Steel Formwork Regular Specifications

One may customize the round steel formwork as per need-they are suitable for round structures of various diameters and heights. Common specifications include:

  • Diameter: 200mm-2000mm
  • Height: 0.5m-3m



Thickness:

Ordinary type: Usually, 3mm to 4mm used for small and medium round structures.

Heavy type: 5mm to 8mm; thus, suitable for large round structures where, depending on design methodology, the higher bearing capacity is needed.



Allowable Pressure

Ordinary round steel formwork

  • Allowable pressure: around 30-50 kN/㎡
  • Maximum pouring rate: 1.0-1.5 meters/hour



Heavy duty round steel formwork

  • Allowable pressure: about 50-80 kN/m2. Some heavy-duty formwork is capable of bearing a load as high as 100 kN/㎡.
  • Maximum pouring rate: 1.5-2.5 meters/hour







Steel Column Shuttering Advantages

  • High Strength And Durability
    The round steel formwork is made of high-quality steel, which has high strength and strong pressure resistance, and can withstand repeated use without being easily deformed.
  • Convenient Assembly
    Precise splicing buckles are designed between the formwork, and the installation and disassembly process is simple and efficient, which can significantly save construction time and labor costs.
  • Smooth Surface
    The formwork surface is flat and smooth, which can reduce concrete surface defects and improve the quality of the column after pouring.
  • High Flexibility
    Templates of different diameters and heights can be customized according to engineering needs, especially suitable for round structures with diverse designs.
  • Environmental Protection And Energy Saving
    Steel formwork has a high reusability rate, reducing waste materials at the construction site, helping to save resources and reduce construction costs.








Steel Column Forms Application Scenarios



The round steel formwork finds its application in constructions like bridges, municipal engineering, and so forth. Ideal for erecting buildings having a round plan:

  • #

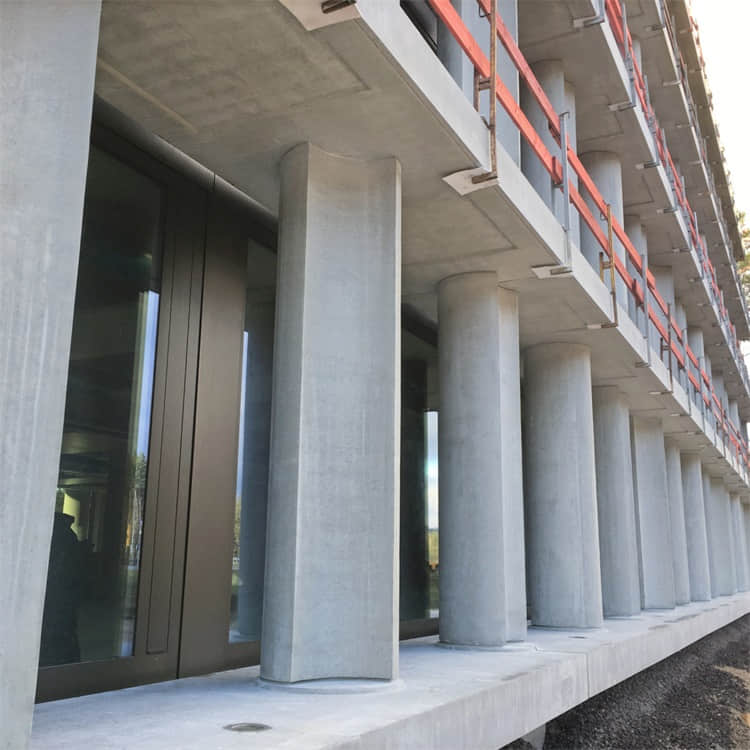

    Residential & Commercial Buildings
    small and medium-sized column pouring to suit the supply needs of internal columns of the building.
  • #

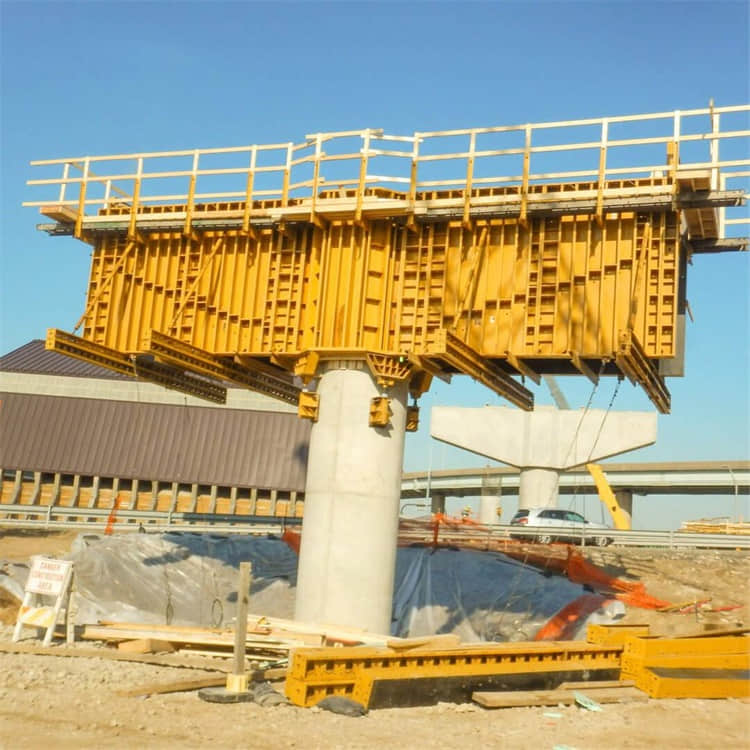

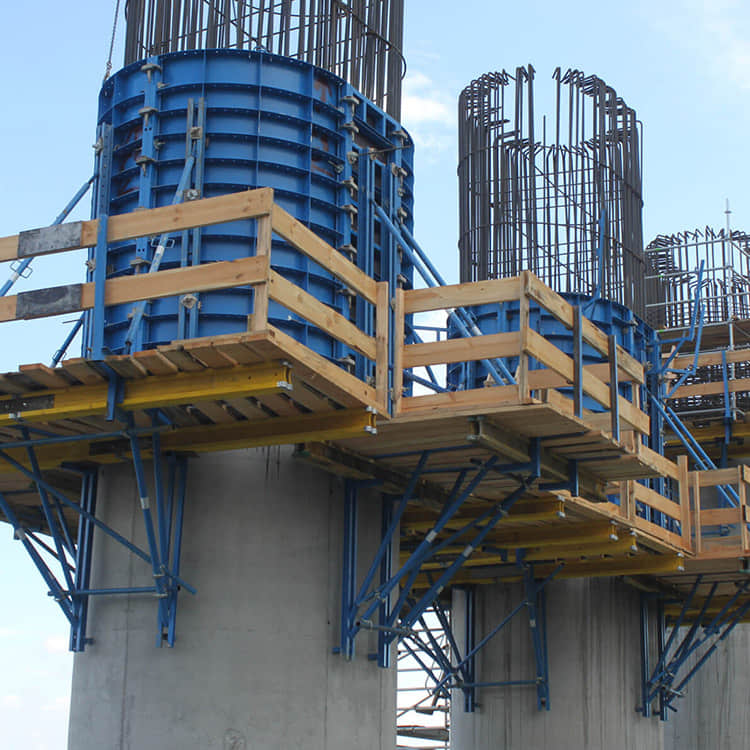

    Bridge Piers
    These piers that require great loading bearing of considerable size, thus ensuring stability and robustness of bridges.
  • #
    Industrial Construction
    Industrial plants, warehouses, and infrastructure, depending on the capacity.
  • #
    Municipal Engineering
    Suitable for the requirements of round formwork for culverts and tunnels in municipal works.








      Circular column formwork are the most efficient one, affording final construction products of high quality and possessing desirable reusability features. Distinguishing the common types from the heavy-duty types of round steel formwork makes it better suited for divergent needs in JavaScript development and fulfills selective needs of other parties being considered for construction that want an efficient and economical selection.
